Max material width 40cm Auto contour cut Interface :USB+U DISK+TCP L70cm Comes with SignMaster software

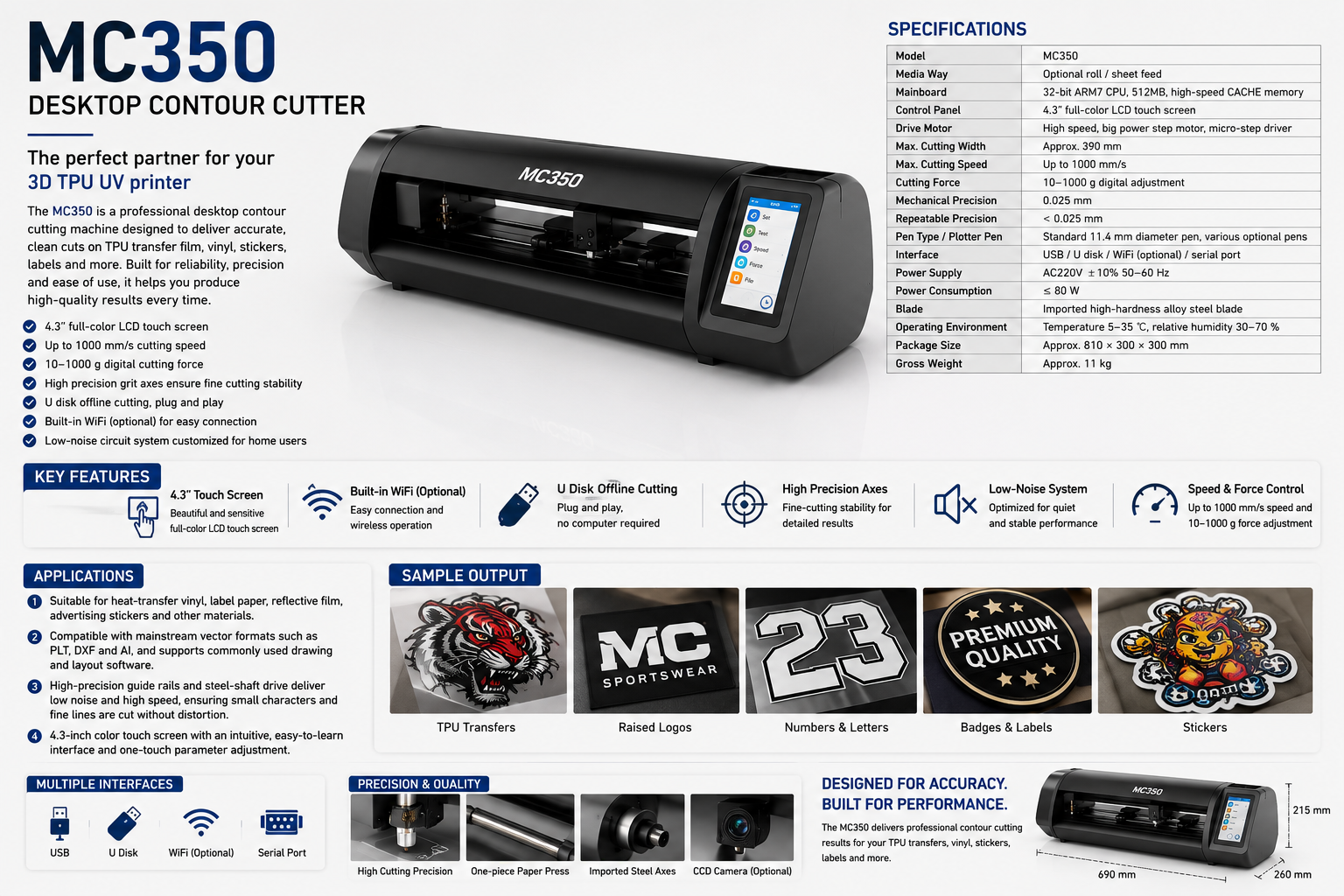

MC350 Desktop Contour Cutter
The MC350 Desktop Contour Cutter is a compact, professional cutting machine designed for accurate contour cutting of 3D TPU transfers, heat-transfer vinyl, stickers, labels, reflective film and other suitable media.
It is an ideal companion for a 3D TPU UV printer, allowing printed designs to be precisely cut around their outlines before weeding and heat pressing. The MC350 is supplied for use with SignMaster contour-cutting software, providing a straightforward print-and-cut workflow for logos, badges, lettering and custom-shaped transfers.
Accurate Contour Cutting
The MC350 combines high-precision guide rails, a durable steel-shaft drive and adjustable cutting pressure to produce clean edges, small lettering and detailed shapes with minimal distortion. Its cutting force can be digitally adjusted between 10 and 500 g, while the maximum cutting speed reaches up to 600 mm/s.
The machine supports a maximum cutting width of approximately 390 mm, making it suitable for 30 cm TPU film and a wide range of desktop cutting applications.
Easy Touchscreen Operation
A built-in 4.3-inch full-colour touchscreen provides simple access to speed, pressure and cutting settings. The interface is designed to be easy to learn, helping operators make quick adjustments for different films and materials.
Flexible Connectivity
The MC350 supports several connection methods, including:
- USB connection
- U-disk offline cutting
- Serial connection
- Optional Wi-Fi connectivity
U-disk support allows prepared cutting files to be loaded and operated without keeping a computer permanently connected.
Designed for Quiet, Stable Performance
High-precision grit axes and the steel-shaft drive help provide stable media movement, low operating noise and accurate cutting of fine lines and small characters. The machine uses a high-speed step motor with a micro-step driver for controlled and reliable movement.
Key Features
- Professional desktop contour cutter
- Ideal for 3D TPU transfer-film production
- Approximately 350 mm maximum cutting width
- Cutting speed up to 1000 mm/s
- Digitally adjustable cutting force from 10–1000 g
- 4.3-inch colour touchscreen
- High-precision guide rails and steel-shaft drive
- USB and U-disk offline cutting
- Optional Wi-Fi connectivity
- Compatible with common vector formats, including PLT, DXF and AI
- Supplied for use with SignMaster contour-cutting software
- Compact desktop design with no stand required
Suitable Applications
The MC350 can be used for contour cutting:
- 3D TPU garment transfers
- Raised logos and badges
- Heat-transfer vinyl
- Stickers and product labels
- Reflective film
- Numbers and lettering
- Promotional graphics
- Custom-shaped decals
- Textile-branding transfers
The manufacturer lists heat-transfer vinyl, label paper, reflective film and advertising stickers among the supported applications.
Typical TPU Workflow
Print the design onto TPU film → load the printed sheet into the MC350 → read the registration marks → contour cut in SignMaster → weed the excess film → heat press onto the garment
Product Specifications
| Specification | Details |
|---|
| Model | MC350 |
| Machine type | Desktop contour cutter |
| Maximum cutting width | Approximately 350 mm |
| Maximum cutting speed | Up to 600mm/s |
| Cutting force | 10–500 g digital adjustment |
| Mechanical precision | 0.025 mm |
| Repeat precision | Less than 0.025 mm |
| Control panel | 4.3-inch full-colour touchscreen |
| Interfaces | USB, U-disk, serial port and optional Wi-Fi |
| Power supply | AC 220 V, 50–60 Hz |
| Power consumption | 80 W or less |
| Package size | Approximately 810 × 300 × 300 mm |
| Gross weight | Approximately 11 kg |
| Cutting software | SignMaster contour-cutting software |
The core dimensions, weight, precision, connectivity and operating specifications are taken from the supplied MC350 technical sheet.
UK Delivery and Support
We supply and deliver the MC350 desktop contour cutter throughout the UK. Setup guidance, SignMaster software support and ongoing technical assistance are available to help customers achieve an accurate and reliable print-and-cut workflow.
