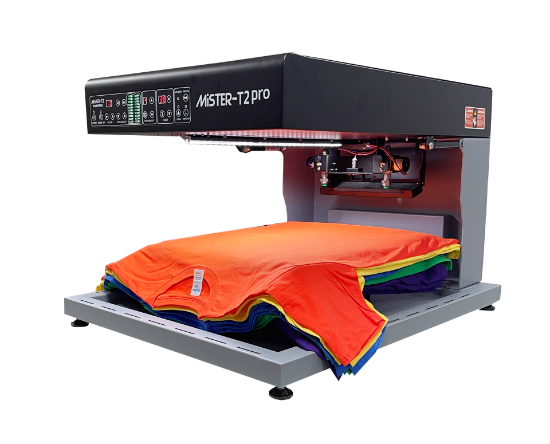

Ecofreen Mister-T2 Pro Pre-treatment Machine

Upto 600 shirts/hour, IDEAL with CONVEYOR DRYER!! Mister T2 Nozzle Wet Capping Station - Automatic Nozzle Cleaning Every 4 hours - Protecting the nozzle from drying or clogging - Kept the nozzle in capping station and purging for seconds by every 4 hours by internal program

Manufacturer: Ecofreen

Features

Bulk Loading (More Than 20~30 T-shirts at a Time)
Open Layout System with the Same Top Lid of Mister-T2
Step Pedal Trigger
Auto Adjustable Platen Height
Barcode Scanning Capability (Optional add-on)
Auto Start wiith Barcode Reader
Dual Nozzle System

Rust Free Structures

Step Pedal Trigger
Freely Adjustable Nozzle Angle
Adjustable Spray Length & Amount
Multi-inlet Selector Valves (4 Liquid Connectable)
Ventilation System (Ring Blower is required Separately)
Pre-Scanning of Spray Area
Smart Auto Nozzle Cleaning and Flushing Program
Preset (Retrieve Frequent Spraying Options)
Rust Free Structures and Parts
Real Time Cost Calculation of Liquid for Each Spraying
12 Months Warranty
Upto 600 shirts/

Specifications

Dimensions 640mm(W) x 900mm(L) x 530mm(H)
Weight 36kgs
Platen Size 40cm x 50cm (16" x 20")
Number of Spray Nozzle Two Nozzles
Maximum Spray Area 40cm x 50cm (16" x 20")
Spray Cycle Time 3 sec ~ 12 sec
Power Supply Free Voltage (100V~240V 50/60hz)
Power Consumption 60W
Packing Size 690mm(W) x 950mm(L) x 760mm(H)
Packing Weight 46Kgs
Liquid Consumtion With Minimum Speed : about 85ml
With Maximum Speed : about 12 ml
