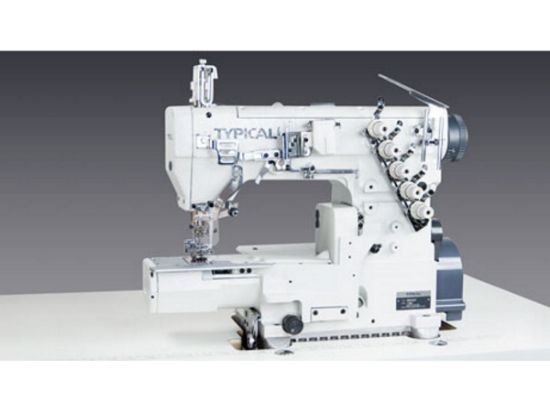

Typical GK337 Chainstitch Machine

The Typical GK337 is a high speed cylinder arm interlock chainstitch sewing machine Xi’an Typical Industries Co Ltd is one of the largest manufacturers of sewing machines in China and has a European centre in Germany – Typical Europe GmbH.
Manufacturer: Typical Sewing Machine
Call for pricing
Contact us For International Delivery
Overview

Technical Data

∙ Optimized thread guides for individual adjustment of each single needle
∙ Stitch type 605 (cover stitch)
∙ Max. sewing speed 6,000 spm.
∙ Differential drop feed max. stitch length 3.6 mm
∙ Max. fabric clearance 6 mm
∙ Balance wheel 55 mm eff. Dia.

Clearance under the arm
215x113 mm

Fully automatic lubrication system

Carton dimensions and gross weights for sewing head
GK337     58x45x63 cm, 48 kg
